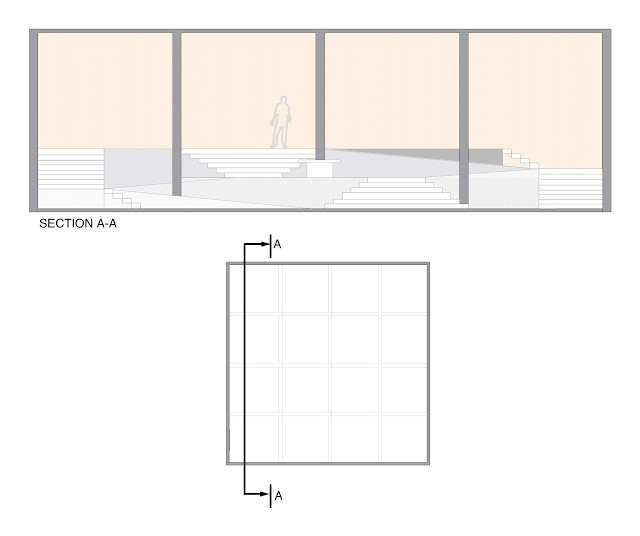

route project, plan and section

Having completed a couple of sketch models (photos to come), i've now put together a floor plan and section view. I've tried to create a sense of symmetry with my route, using the 9 columns as markers for positioning of the stairs/ramps etc.
The design offers a variety of different options for a route through the space, with several different opportunities to move from ramp to stair, or stair to ramp...
Three separate levels allow for plenty of space to move around and for people to stop if they wish. A small seating area in the centre gives the opportunity for people to have a seat.

glue everywhere

this project serves only to remind me that I'm shit at making models

lack of model

Despite this project being more about producing real life models/maquettes than a digital one, my model making skills are poor to say the least..
i'll hold off posting images of my attempts until they progress beyond a cereal box with pipe cleaners attached and look a little more professional..
in the meantime here is a photoshop image to show the general feel of my idea!

en route

The plan shows an enclosed courtyard within a cultural centre (think museum/art gallery). It functions as a circulation space between two wings of the building. It can be approached in both directions.

The existing structure consists of 9 columns supporting a grid of beams at ceiling level. This must remain intact.

The section indicates a height difference of 2000mm between both entrances. This necessitates the inclusion of stairs and a ramp. No lifts are permitted.

It is a further requirement that it is possible to cross from the stairway to the ramp or vice versa on at least one point of the journey.

Final cube house plans and sections

tweaked and finalised...

Cube House

So I've been working on the layout for the Cubehouse for a while now, and finally think i have it sorted..
started to put together some detailed floor plans and section views, although they may need a little more adjusting

stairway to heaven

Looking more specifically at different staircase solutions that utilise space most effectively and/or create added storage...

small interiors and compact living

Here are a few images that i have gathered, as research for the cube house project. I'm in the process of gathering as much inspiration and information as i can, in order to use the dimensions of the space as effectively as possible..

Just looking at these images, its obvious that one of the most important elements to consider will be the staircase. Finding the most effective solution for the stairs will free up more space and potentially provide extra storage.

Mezzanine levels, will also be important, especially to fit in some of the necessary features of the cube house.

cube house

You are to design the interior for a house for two people. The exterior shell can not be modified in any way. There are equally delightful views from all windows.

It must include the following:

• Dining area for 6 people.

• Comfortable seating for 4 people.

• One master bed room with a double bed.

• One guest bedroom with either 1 double bed or 2 single beds.

• 3 floors; ground, first, second.

• Kitchen and Bathroom units: these may not be modified and can not touch the external walls; please refer to supplied  drawings.

• One roof light 800mm wide, any length

• Plus lights and columns; please refer to supplied drawings.

• Minimum floor to ceiling heigh 2400mm

• Floor slab thickness 200mm
